PP BCD TNS 25/100/FM
Article Nr. : 373962
The installation place of the PowerPro BCD is the main distribution board upstream or downstream of the power meter. According to the lightning protection zones concept in IEC DIN EN 62305 part 1-4 (VDE 0185-305-1-4), it can universally be installed at the transition 0A to 2. Combined modular and compact multi-pole arrester for 3-phase TN-S systems.

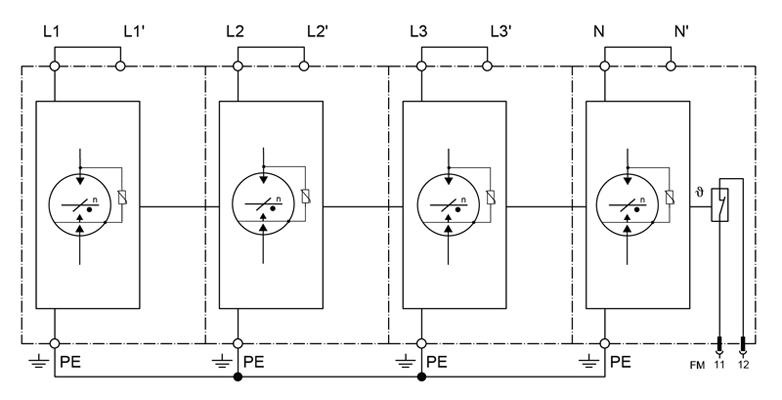

- Remote signalling contact: break contact
- Combined Arresters Class I+II+III (T1+T2+T3)
- Test standard: IEC 61643-11 / EN 61643-11
- No leakage currents, thus, allowing installation upstream of power meters
- Rare-gas-filled spark gap, hermetically sealed
- High TOV resistance
- Discharge capacity up to 100 kA (10/350 µs)
- EAC certification
| IEC category | Type 1 + 2 + 3 / class I+II+III |
| Nominal voltage ACUN | 230/400 V~ |
| Max. continuous operating voltage AC (50/60 Hz) Uc | 255 V~ |
| Insulation resistanceRisol | > 10 GΩ |
| Protection level at 100% lightn. imp. sparkover voltage (1.2/50µs)Up | ≤ 1,0 kV |
| Protection levelUp | ≤ 1,0 kV |
| Response timetA | < 50 ns |
| Lightning impulse current (10/350 µs) totalItotal | 100 kA |
| Lightning impulse current (10/350 µs) L-N/N-PE/L-PENIimp | 25 / 25 / - kA |
| Follow-on current extinguishing capability at Uc (50/60 Hz)Ifi | 4,0 kA |
Additional Information
| Short-circuit withstand capability at max. back-up fuseISCCR | 50 kAeff |
| Max. acceptable back-up fuse F2 (spur wiring) | 250 A gG |
| Max. acceptable back-up fuse F1 (serial wiring) | 125 A gG |
| Operating temperature rangeTU | -40 - +80 °C |
| Max. conductor cross section | 50 mm² stranded/35 mm² flexible |
| Max. connection torque for terminals | 4,0 Nm |
| Recommended conductor cross section | 25 mm² |
| Enclosure material / colour | polycarbonate (halogen-free) UL 94-V0 / yellow |
| FM contact / contact type | break contact |
| Switching capacity FM | 250 V/2 A |
| Max. conductor cross section FM | 1,5 mm² |
| Max. locking torque FM terminals | 0,25 Nm |
| Degree of protection (IEC EN 60529) | IP 20 |
| Mounting on | 35 mm DIN rail (DIN EN 60715 ) |

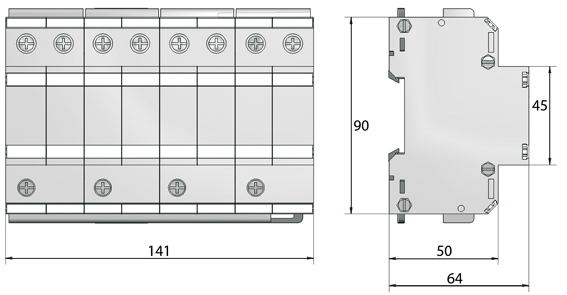

| Dimension (DIN 43880) | 8 TE |
| Power supply system | 3 phase TNS systems |
