DP 2x1-80V/80V-Tr
Article Nr. : 278080-A
EMC filter for data and signal lines combined with surge protection enables smooth operation of sensitive electronic equipment in rough environment.
- Signal and data line protection with low-pass filter
- Signal and data line protection with low-pass filter

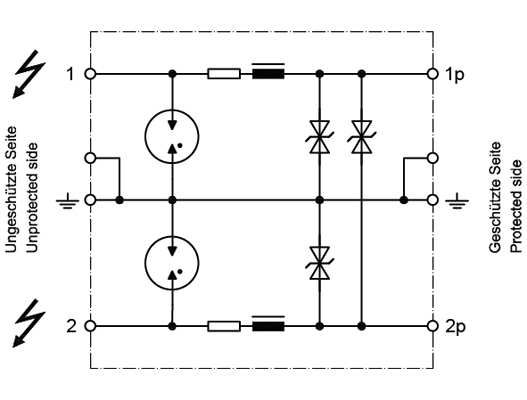

- Protective circuit for 2 signal lines with common ground
- Applicable at the boundaries LPZ 0A - 2 and higher
- Mounting on 35 mm DIN rail (EN 60715)
- Degree of protection according to IEC EN 60529: IP 20
- Space required for installation: 18 mm
- EAC certification
| IEC category | D1 / C2 / C1 / C3 |
| Nominal voltage DCUN | 80 V= |
| Max. continuous operating voltage DCUc | 85 V= |
| Max. continuous operating voltage AC (50/60 Hz) Uc | 60 V~ |
| Nominal currentIL | 0,4 A |
| D1 lightning impulse current (10/350 µs) per lineIimp | 2,5 kA |
| D1 lightning impulse current (10/350 µs) totalItotal | 5 kA |
| C2 nominal discharge current (8/20 µs) per lineIn | 10 kA |
| C2 nominal discharge current (8/20 µs) totalImax | 20 kA |
| Protection level at In (line-earth)Up | ≤ 140 V |
Additional Information
| Leakage current at Uc DC | ≤ 5 µA |
| DC resistanceR | 3,2 Ω |
| Series inductance, typ.L | 30 µH |
| Capacitance, line-earthC | ≤ 1 nF |
| Max. operating frequency (-3 dB)fG | 600 kHz |
| Operating temperature rangeTU | -25 - +85 °C |
| Max. conductor cross section | 2.5mm² solid or 1.5mm² flexible with sleeve |
| Max. connection torque for terminals | 1,5 Nm |
| Enclosure material / colour | polycarbonate (halogen-free) UL 94-V0 / yellow |
| Degree of protection (IEC EN 60529) | IP 20 |
| Mounting on | 35 mm DIN rail (DIN EN 60715 ) |
| Dimension (DIN 43880) | 1 TE |
Accessories
Grounding bridge
Article Nr.: 170080
Grounding bridge
Article Nr.: 170080
| Cross section | |
| Material | Kupfer (Cu) |
| Net weight / pc | 17 g |
