EPF 230V/16A-Tr2-FM
Article Nr. : 253009

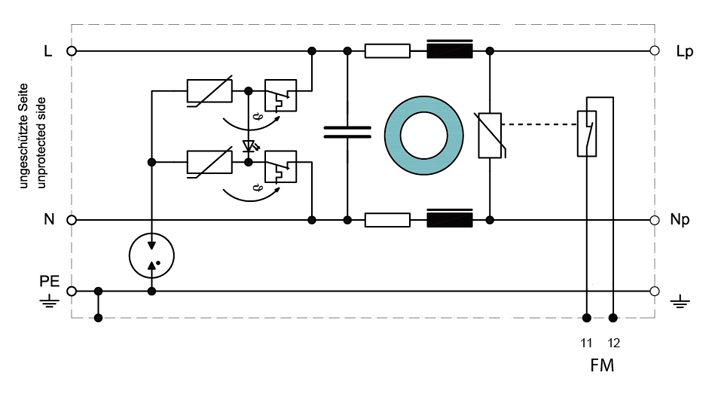

EMC filters with integrated overvoltage protection enable smooth operation of highly sensitive electronics in harsh environments. The protective circuit with filter contains an optimal decoupling between its medium protection (varistors) and its fine protection (varistors). All leakage current-afflicted elements are galvanically isolated from earth by a gas-filled surge arrester (GDT). Suitable for the application in single-phase TN systems.
- EnerPro Filter for mounting rail
- Test standard: IEC 61643-11 / EN 61643-11
- Applicable at the boundaries LPZ 0B - 2 and higher
- Remote signalling contact: break contact
- EAC certification
| IEC category | Type 2 + 3 / class II + III |
| Nominal voltage ACUN | 230 V~ |
| Max. continuous operating voltage AC (50/60 Hz) Uc | 275 V~ |
| Protection level at 5 kA (8/20 µs)Up | ≤ 1,4 kV |
| Protection level at In (8/20 µs)Up | ≤ 2 kV |
| Response time L-N/L,N-PE | ≤ 25 ns |
| Nominal impulse discharge current (10 x 8/20 µs)In | 15 kA |
| Max. impulse discharge current (1x 8/20 µs)Imax | 25 kA |
| Max. allowed fuse or back-up fuse | 16 A gG |
| Operating temperature rangeTU | -40 - +80 °C |
Additional Information
| Max. conductor cross section | 50 mm² stranded/35 mm² flexible |
| Recommended conductor cross section | 25 mm² |
| Max. connection torque for terminals | 4,0 Nm |
| Enclosure material / colour | polycarbonate (halogen-free) UL 94-V0 / yellow |
| Degree of protection (IEC EN 60529) | IP 20 |
| Mounting on | 35 mm DIN rail (EN 60715) |

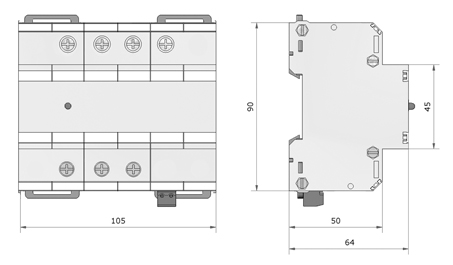

| Installation dimensions (H × W × D) | 105 x 90 x 64 mm |
| Switching capacity FM | 250 V/2 A |
| Max. conductor cross section FM | 1,5 mm² |
| Power supply system | 1 phase TN systems |
