DP 2x1-RLC/50V-Tr

Article Nr. : 287050

Technical Data

Operating Manual

Specification Texts

CAD Model
EMC filters with integrated overvoltage protection enable smooth operation of highly sensitive electronics in harsh environments. Surge voltage protector for electronical equipment with an operating voltage of up to 50 V DC, with an impulse current withstand strength of 30 kA (8/20 µs). The devices was designed to protect sensitive electronic equipment. Protection of DC-measuring lines up to 50V DC. Protection of anode side measuring circuit for rectifier in cathodic protected systems (CCPS)
  • Signal and data line protection with low-pass filter
  • Signal and data line protection with low-pass filter
  • Applicable at the boundaries LPZ 0A - 2 and higher

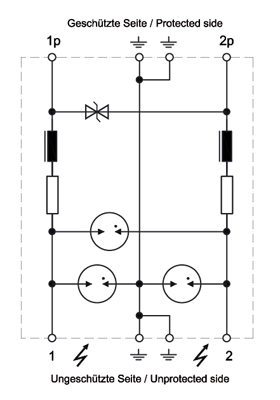

  • Protective circuit for 2 signal lines without reference to ground potential
  • Maximum nominal current 100 mA
  • Surge voltage protector for electronical equipment with an operating voltage of up to 50 V DC, with an impulse current withstand strength of 30 kA (8/20 µs). The devices was designed to protect sensitive electronic equipment.
  • Leakage current-free
  • Mounting on 35 mm DIN rail (EN 60715)
  • Space required for installation: 18 mm
  • EAC certification
IEC category D1 / C2 / C1 / C3
Max. continuous operating voltage DCUc 50 V=
Nominal currentIL 0,1 A
D1 lightning impulse current (10/350 µs) per lineIimp 2,5 kA
D1 lightning impulse current (10/350 µs) totalItotal 5 kA
C2 nominal discharge current (8/20 µs) per lineIn 10 kA
C2 nominal discharge current (8/20 µs) totalImax 30 kA
Protection level at 1 kV/µs (1p-2p)Up ≤ 60 V
Protection level at 1 kV/µs (1p,2p-PE)Up ≤ 650 V
Response time 1p-2p, 2-PE (1 kV/µs)tA ≤ 2/25 ns
Additional Information
Operating temperature rangeTU -25 - +85 °C
Max. conductor cross section 2.5mm² solid or 1.5mm² flexible with sleeve
Max. connection torque for terminals 1,5 Nm
Enclosure material / colour polycarbonate (halogen-free) UL 94-V0 / yellow
Protection circuit casting compound Polyurethane, flexible
Degree of protection (IEC EN 60529) IP 20
Dimension (DIN 43880) 1 TE

Accessories

Grounding bridge

Article Nr.: 170080
