DP 2x1-RLC-Tr

Article Nr. : 270000

Technical Data

Operating Manual

Specification Texts

CAD Model
270000_DP 2x1-RLC-Tr_v03.jpg
EMC filter for data and signal lines combined with surge protection enables smooth operation of sensitive electronic equipment in rough environment.
  • Signal and data line protection with low-pass filter
  • Signal and data line protection with low-pass filter
  • Applicable at the boundaries LPZ 0A - 2 and higher

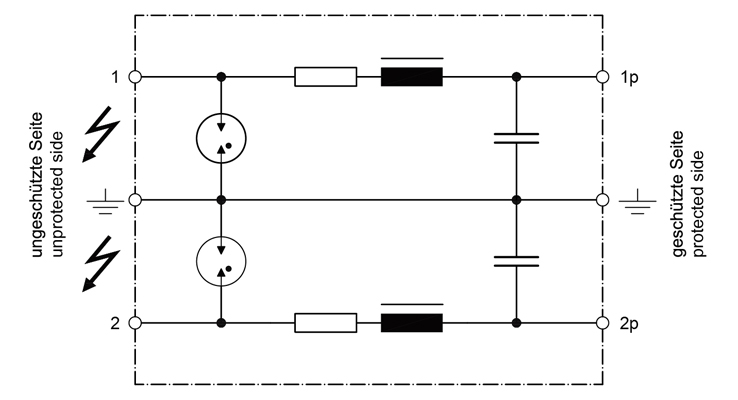

  • Protective circuit for 2 signal lines with common ground
  • Operating voltage up to 150 V DC
  • Maximum nominal current 400 mA
  • Mounting on 35 mm DIN rail (EN 60715)
  • Degree of protection according to IEC EN 60529: IP 20
  • Space required for installation: 18 mm
  • EAC certification
IEC category D1 / C2 / C1 / C3
Nominal voltage DCUN 150 V=
Max. continuous operating voltage DCUc 170 V=
Max. continuous operating voltage AC (50/60 Hz) Uc 120 V~
Nominal currentIL 0,4 A
D1 lightning impulse current (10/350 µs) per lineIimp 2,5 kA
D1 lightning impulse current (10/350 µs) totalItotal 5 kA
C2 nominal discharge current (8/20 µs) per lineIn 10 kA
C2 nominal discharge current (8/20 µs) totalImax 20 kA
Leakage current at Umax DC ≤ 0,001 µA
Additional Information
Max. operating frequency (-3 dB)fG 100 kHz
DC resistanceR 3,5 Ω
Series inductance, typ.L 185 µH
Capacitance, line-earthC ≤ 2,2 nF
Protection level line-earth at 1 kV/μs and InUp ≤ 800 V
Operating temperature rangeTU -25 - +85 °C
Max. conductor cross section 2.5mm² solid or 1.5mm² flexible with sleeve
Max. connection torque for terminals 1,5 Nm
Dimension (DIN 43880) 1 TE

Accessories

Grounding bridge

Article Nr.: 170080
