DataPro-TAE/NFN-aP
Article Nr. : 240004
Surge protective device in a housing for surface mounting for the protection of analog telecommunication wires such as analog TAE or DSL interfaces.
- For analog telephone lines
- For analog telephone lines
- Fax, modem, answering machine
- Emergency dialling devices
- Applicable at the boundaries LPZ 0B - 2 and higher
- TAE connector, code NFN
- Standard of the Deutsche Telekom
- Test standard: IEC 61643-21 / EN 61643-21

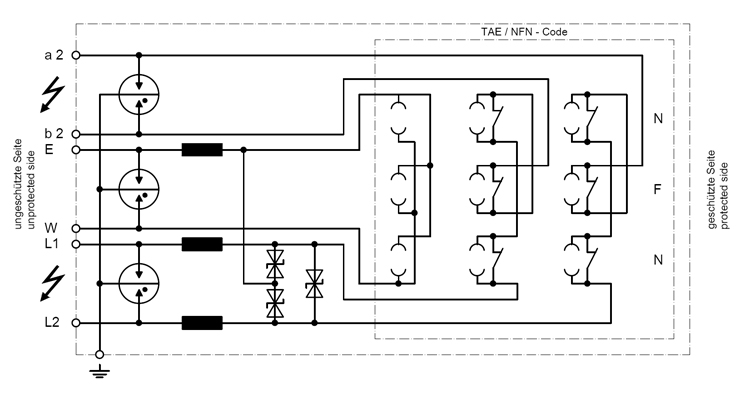

- 2-stage, (5-point) coarse and fine protective circuit
| IEC category | C2 / C1 / C3 |
| Nominal voltage DCUN | 60 V= |
| Max. continuous operating voltage DCUc | 185 V= |
| Nominal currentIL | 1,5 A |
| C2 nominal discharge current (8/20 µs) totalImax | 5 kA |
| Protection level at In (line-line)Up | ≤ 300 V |
| Protection level at In (line-earth)Up | ≤ 450 V |
| Response time (line-line)/(line-earth)tA | ≤ 10 / ≤ 50 ns |
| Max. operating frequency (-3 dB)fG | 1,5 MHz |
| Resistance per pathR | 1 Ω |
Additional Information
| Operating temperature rangeTU | -40 - +80 °C |
| Type of connection | Screw-type terminal/TAE |
| Degree of protection (IEC EN 60529) | IP 20 |
